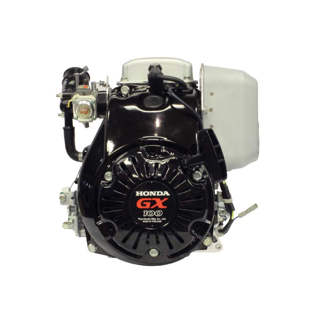

Honda | GX Series | OHC | 98cc | M8 x 1.25 Tapped, Tapered | Recoil | Horizontal | Rammer Spec

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: The GX100 lives up to legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

SKU: GX100RTKRWN-BLK

Manufacturer Part Number: GX100RTKRWN-BLK

Brand: Honda

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, availability, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits Videos Product Specifications Related Products

Product Specifications

Equipment Type	Engine (Horizontal)
Air Cleaner Type	Dual Element
Bearing Type	Ball
Bore	2.2-In.
CARB Approval For California	Yes
Carburetor	Rammer Float less
Choke Control	Throttle
Compression Ratio	8.5:1
Cooling System	Air Cooled
Crankshaft	K-Type
Crankshaft Diameter	Metric M8 X 1.25 Tapped, Tapered
Crankshaft Output	Horizontal
Cylinder Bore	Cast Iron
Cylinders (Qty.)	1
Engine Displacement	98.5 cc
Fuel Tank & Capacity	No
Governor System	Centrifugal Mechanical
Ignition System	Transistorized Magneto
Item No_	GX100RTKRWN-BLK
Low Oil Alert	Yes
Low Oil Shutdown	No
Lubrication System	Splash
Max. RPM	3600
Mounting Base Length	6.375-In.
Mounting Base Width	3.15 to 3.34-In.
Mounting Bolt Circle	3.625-In.
Muffler Included	Yes
Net Power Output	2.8 HP
Net Torque	4.2 Ft-Lbs.
Oil Capacity	0.42 Qt
Product Dimensions L X W X H - In. (mm)	11.6-In. (295mm) X 12-In. (304mm) X 15.8-In. (402mm)
Product Weight	29
PTO Height	4.17-In.
Starter Type	Recoil
Stroke	1.56-In.
Throttle Control	Throttle
