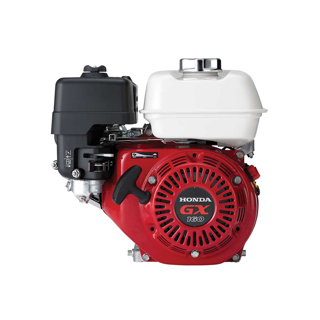

Honda | GX Series | OHV | 163cc | 3/4 In. x 2.00 In. | Recoil | Horizontal | 6:1 Gear Reduction

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: The GX160 lives up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

SKU: GX160UT2HX2

Manufacturer Part Number: GX160UT2HX2

Brand: Honda

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, availability, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits Videos Product Specifications Related Products

Product Specifications

Equipment Type	Engine (Horizontal)
Air Cleaner Type	Dual Element
Bearing Type	Ball
Bore	2.7-In.
CARB Approval For California	Yes
Carburetor	Butterfly Float
Choke Control	Manual
Compression Ratio	9.0:1
Cooling System	Air Cooled
Crankshaft	H-Type
Crankshaft Diameter	.75 In. (3/4)
Crankshaft Length	2.00-In.
Crankshaft Output	Horizontal
Cylinder Bore	Cast Iron
Cylinders (Qty.)	1
Engine Displacement	163 cc
Fuel Filter	In-Line
Fuel Tank & Capacity	Yes, 3.3 Qt
Gear Reduction	6:1
Governor System	Centrifugal Mechanical
Ignition System	Transistorized Magneto
Item No_	GX160UT2HX2
Low Oil Alert	Yes
Low Oil Shutdown	Yes
Lubrication System	Splash
Max. RPM	3600
Mounting Base Length	6.375-In.
Mounting Base Width	3.15 to 3.34-In.
Mounting Bolt Circle	3.625-In.
Muffler Included	Yes
Net Power Output	4.8 HP
Net Torque	7.6 Ft-Lbs.
Oil Capacity	0.61 Qt
Product Dimensions L X W X H - In. (mm)	12.28-In. (312mm) X 14.25-In. (362mm) X 13.62-In. (346mm)
Product Weight	45
PTO Height	4.17-In.
Starter Type	Recoil
Stroke	1.8-In.
Throttle Control	Remote Wire
