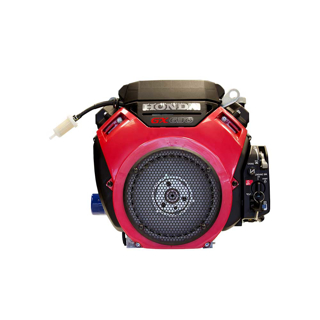

Honda | GX Series | OHV | V-Twin | 688cc | 1 In. x 2.9 In. | Electric Start | Horizontal

Honda V-Twin engines offer high horsepower, great adaptability, quiet operation, and excellent fuel efficiency.

SKU: GX630RHQZB2

Manufacturer Part Number: GX630RHQZB2

Brand: Honda

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, availability, and to order.

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Product Specifications

Equipment Type	Engine (Horizontal)
Air Cleaner Type	Dual Element
Bearing Type	Ball
Bore	3.1-In.
CARB Approval For California	No
Carburetor	2-Barrel Butterfly Valve, Internal Vent
Charging System Amps	17
Choke Control	Manual
Compression Ratio	9.3:1
Cooling System	Air Cooled
Crankshaft	Q-Type
Crankshaft Diameter	1 In.
Crankshaft Length	2.9-In.
Crankshaft Output	Horizontal
Cylinder Bore	Integrated
Cylinders (Qty.)	2
Engine Displacement	688 CC
Fuel Filter	In-Line
Fuel Tank & Capacity	No
Governor System	Mechanical
Ignition System	Electronic, Digital CDI With Variable Ignition Timing
Item No_	GX630RHQZB2
Low Oil Shutdown	Yes
Lubrication System	Forced Lubrication
Max. RPM	3600
Mounting Base Length	7.68-In.
Mounting Base Width	3.39 to 4.65-In.
Mounting Bolt Circle	5, 6.5, 7.75-In.
Muffler Included	No
Net Power Output	20.8 HP
Net Torque	35.6 Ft-Lbs.
Oil Capacity	2.1 Qt
Product Dimensions L X W X H - In. (mm)	15.94-In. (405mm) X 16.14-In. (410mm) X 17.24-In. (438mm)
Product Weight	124
PTO Height	5.25-In.
Starter Type	Electric
Stroke	2.8-In.
Throttle Control	Manual
