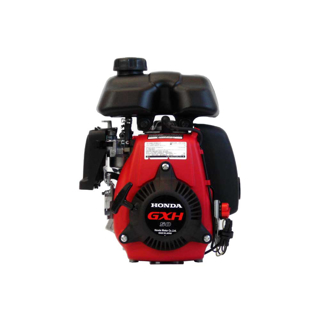

Honda | GXH Series | OHV | 49.4 cc | 5/8 In. x 1.26 In. | Recoil | Horizontal

Honda’s GX50 general-purpose engine expands their mini-four stroke lineup with a model that offers high output and light weight—extending into more demanding commercial and rental applications with excellent fuel efficiency. Featuring a compact and lightweight design, the GX50 is the first Honda four-stroke model in the two-horsepower class that is 360-degrees inclinable during operation and storage.
SKU: GXH50UTQXA
Manufacturer Part Number: GXH50UTQXA
Brand: Honda
As a consumer, I wish to purchase, rent, or service this product at the nearest retail store, rental center, or service shop.
As a reseller, rental center owner, or manufacturer, I want to partner with GNE to include this product in my store inventory, rental fleet, or OEM product offerings.

Buy More, Save More

Qty Your Cost
({{unit_of_measure}})
Limited-Time Savings
({{unit_of_measure}})
Now Only
({{unit_of_measure}})
Order Today to Guarantee These Prices
Product Specifications
Equipment Type Engine (Horizontal)
Air Cleaner Type Semi-Dry
Bearing Type Ball
Bore 1.65-In.
CARB Approval For California Yes
Carburetor Float
Choke Control Manual
Compression Ratio 8.0:1
Cooling System Air Cooled
Crankshaft Q-Type
Crankshaft Diameter .625 In. (5/8-18)
Crankshaft Length 1.25-In.
Crankshaft Output Horizontal
Cylinder Bore Cast Iron
Cylinders (Qty.) 1
Engine Displacement 49.4 CC
Fuel Filter In-Line
Fuel Tank & Capacity Yes, .81 Qt
Governor System Centrifugal Mechanical
Ignition System Transistorized Magneto
Item No_ GXH50UTQXA
Low Oil Alert Yes
Low Oil Shutdown Yes
Lubrication System Splash
Max. RPM 7600
Mounting Base Length 4.75-In.
Mounting Base Width 2.12-In.
Mounting Bolt Circle 4.17-In.
Muffler Included Yes
Net Power Output 2.1 HP
Net Torque 2.0 Ft-Lbs.
Oil Capacity 0.26 Qt
Product Dimensions L X W X H - In. (mm) 8.86-In. (225mm) X 10.79-In. (274mm) X 13.9-In. (353mm)
Product Weight 17
PTO Height 3.34-In.
Starter Type Recoil
Stroke 1.42-In.
Throttle Control Manual
