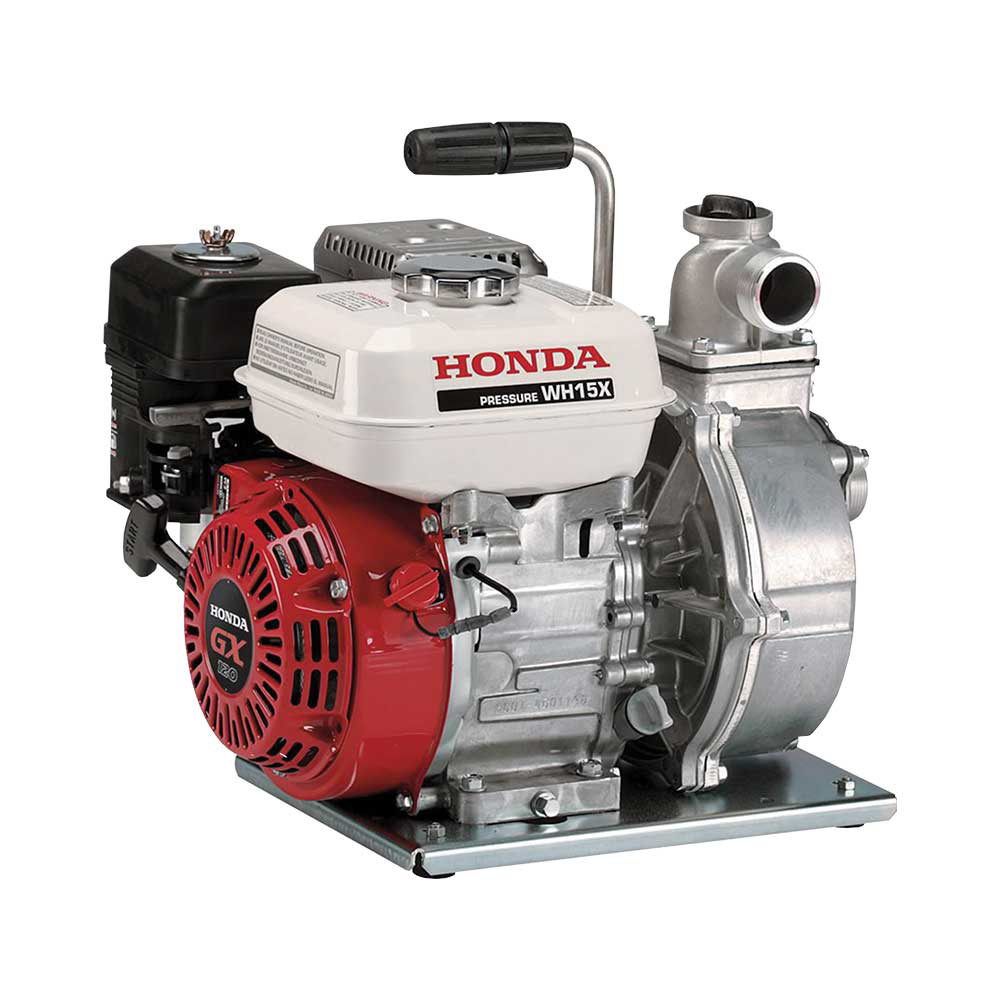

Honda High Pressure Dewatering Pump | 1.5 In. | 98 GPM

Honda Self-Priming High-Pressure Water Pump has a strong 118cc OHV engine and 1 1/2in. suction and discharge ports. Handling pressures up to 55 PSI, it is well suited for high-pressure applications like irrigation and fire fighting.

SKU: WH15XT2A

Manufacturer Part Number: WH15XT2A

Brand: Honda

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, availability, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits Videos Product Specifications Related Products

Features and Benefits

High pressure with lower flow
Ideal where high pressure is required such as when using sprinklers or a nozzle
Cast iron volute and impeller
Optional hoses, clamps, and strainer available

Product Specifications

Equipment Type	Pump (Dewatering)
Bore And Stroke	2.4 In. X 1.7 In.
Compression Ratio	8.5:1
Discharge Capacity	98 Gal/min
Discharge Port Diameter	1.5 In. Npt
Displacement	118cc
Drive	Direct
Dry Weight	49 Lbs
Engine	Gx120
Engine Brand	Honda
Fuel Capacity for Burner	.53 Gal
Impeller	Cast Iron
Mechanical Seal (Pump Case/Impeller)	Carbon/ceramic
Pressure	55 Psi
Priming Time	80 Sec. At 16.4 Ft.
Pump Type	High Pressure De-watering
Run Time	1.5 Hr
SKU	WH15XT2A
Strainer Part Number	78325-yb7-020
Suction Head Lift	26 Ft.
Suction Port Diameter	1.5 In. Npt
Total Head Lift	131 Ft.
